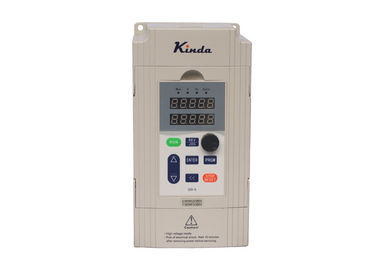

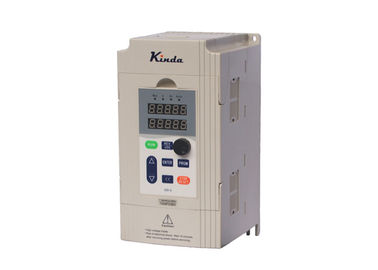

Kinda Low Voltage AC Drives Energy Saving For Platic Film Blowing Machine

Kinda Low Voltage AC Drives Energy Saving For Platic Film Blowing Machine
Kinda Low Voltage AC Drives Energy Saving For Platic Film Blowing Machine Kinda Low Voltage AC Drives Energy Saving For Platic Film Blowing Machine

Large Image :  Kinda Low Voltage AC Drives Energy Saving For Platic Film Blowing Machine Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3~8 Day
Payment Terms: TT
Supply Ability: Adequate inventory
Detailed Product Description
Starting Torque: 0.5Hz/150% Torque, Speed Ratio 1:100, Dynamic Response <20ms, Steady Speed Accuracy ±0.2% High Overload Capacity: 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
High Reliability: Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design Automatic Carrier Adjustment: Automatically Adjust Carrier Frequency Based On Load Characteristics
Smart Start/sttop: Reliable Speed Tracking Restart Performance Braking Method: With DC Braking, Resistance Energy Braking
High Light:

low voltage vfd

,

frequency converter drive

Kinda Low Voltage AC Drives Applied In Platic Film Blowing Machine



1, Load feature
There are two parts on plastic film blowing machine can get energy saving:
(1) Power driven system, most of this part will install an additional frequency inverter, which make the main motor works at30~40Hz to get energy saving;
 (2) Heating system, most of this part will install an electromagnetic heater to get energy saving.

2, Requests for frequency inverters (VSD)
(1) Output high torque at low frequency.
(2) High speed control accuracy. (to avoid the raised grain occurs on the film).

3, Instruction for commissioning
(1) Pictures of plastic film blowing machine

Kinda Low Voltage AC Drives Energy Saving For Platic Film Blowing Machine 0

Kinda Low Voltage AC Drives Energy Saving For Platic Film Blowing Machine 1

(2) Parameters setting list (take 15kW, 5.5kW motor as example)

No. Function codes Default Setting value Explanation
1 F0-02 0 1 Start / stop by external signal 15kW main motor
2 F0-03 1 1 The motor speed is adjusted by keypad potentiometer.
3 F0-17 Model depend 15s Acceleration time (adjustable)
4 F0-10 Model depend 15s Deceleration time (adjustable)
5 F0-12 0 2 Torque boost (adjustable)

1 F0-02 0 1 Start / stop by external signal 5.5kW motor
2 F0-03 1 1 The motor speed is adjusted by keypad potentiometer.
3 F1-17 Model depend 15s Acceleration time (adjustable)
4 F1-18 Model depend 15s Deceleration time (adjustable)



 (3) Typical wiring diagram

Kinda Low Voltage AC Drives Energy Saving For Platic Film Blowing Machine 2

4, Notices
The temperature is always high on the site, pay attention to dust prevention and heat sink for frequency inverter.
