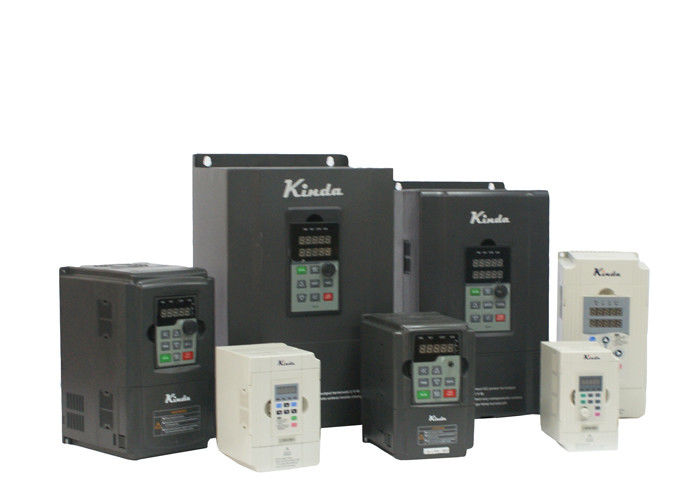

Water Pump Three Phase Ac Drive , Variable Ac Motor Controller Energy Saving

Water Pump Three Phase Ac Drive , Variable Ac Motor Controller Energy Saving
Water Pump Three Phase Ac Drive , Variable Ac Motor Controller Energy Saving

Large Image :  Water Pump Three Phase Ac Drive , Variable Ac Motor Controller Energy Saving Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3~8 Day
Payment Terms: TT
Supply Ability: Adequate inventory
Detailed Product Description
Design: Modular Design, Compact Structure, Easy Maintenance And Enhanced Product Interchangeability PCB Protection: Spray Three Anti-paint To Protect The Circuit Board Intelligently And Efficiently
Installation: Simple Wiring Installation Control: Main/slave Control Energy Saving
Run: Smooth Main/slave Switching, No Change In Water Pressure Start Up: Simple Parameter Setting, One-button Start Automatic Addition And Subtraction Pump Control
High Light:

ac motor vfd

,

adjustable frequency ac drive

Water Pump AC Variable Frequency Drive 3AC 380V 90KW ~ 132KW



The inverter transmits the changed signal, and after the microcomputer judges the calculation and compares with the set pressure, it sends a command to change the frequency to the controller. The controller changes the speed of the water pump motor and the number of enabled pumps by changing the frequency, and automatically adjusts the peak and valley water consumption. To ensure that the pressure of the water supply network is constant to meet the needs of users





Item Technical Index Specification
Input Input voltage 1AC 220~240V±15%
3AC 220~240V±15%
3AC 380~460V±15%
Input frequency 50/60Hz±5%
Output Output frequency 0~6000Hz
Output voltage 0~rated input voltage
Control Features Operation command mode Keypad control
Terminal control
Serial communication control (Modbus)
Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.
Control mode V/f control
Sensorless vector control
Torque control
Overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
Frequency accuracy Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0
Starting torque 0.5Hz/180% (SVC); 1Hz/150% (V/f)
Speed control precision ±0.5% (SVC)
Carrier frequency temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to
V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s
DC braking DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency
Braking time: 0.0s~25.0s
Braking unit build-in standard.
Simple PLC & multi-step speed operation It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.
Jog operation Jog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Wobble frequency control Multiple triangular-wave frequency control, special for textile
Torque control Torque control without PG
Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection function Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.
Timing/length/counting control Timing/length/counting control function
Input/output terminals Output terminals 2 relay outputs,
2 open collector outputs,
2 anaalog outputs, 0~10V / 4~20mA
Communication terminals Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol
Input terminals Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA
Human machine interface LED display Display frequency setting, output frequency, output voltage,output current, etc. Two lines display
Environment Ambient temperature -10~50°C, without direct sunshine.
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, >1000M: output derated
Storage temperature -20~60°C

No Items KD330
1 Reliable hardware Only first-class componens are built-in.
2 Rubust design IGBT current > 2 times of inverter output current
Capacitor > 50uF/A
3 PCB aging test 100% test, 50°C, 12 hours.
4 Finished products aging test 100% test, 50°C, 24 hours.
5 Loading test Two times, 100% tested:
1. After manufacturing.
2. After aging test.
6 Smart start / stop mode Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.
7 Grouped pulse testing Without failure under 4500V (better EMC performance).
8 Electrostatic testing 1. Noncontact conditions -- without failure under 10000V.
2. Under contact condition -- without failure under 5000V.
9 Big start torque 0.5Hz/150% (V/f), 1Hz/150% (SVC)
10 High overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
11 LED display >7,5kW, two lines parameters dispaly, convenient for commissioning and operating.
12 EMC filter C3 level EMC filter build-in standardly
