Spindle VFD Frequency Converter Drive1.5KW Modular Design For Engraving Machine

Spindle VFD Frequency Converter Drive1.5KW Modular Design For Engraving Machine

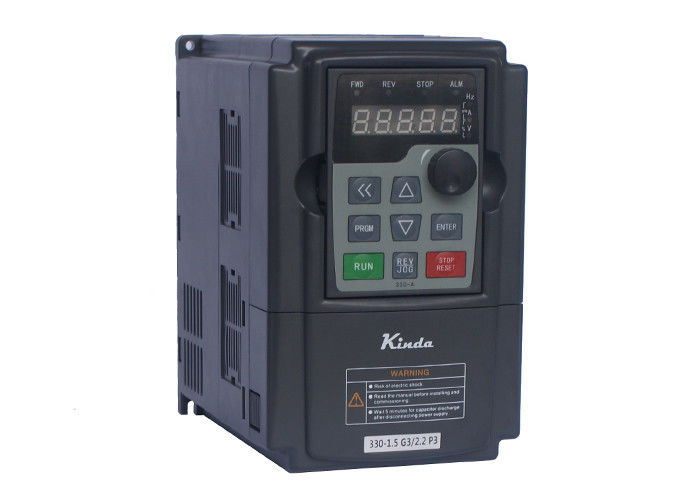

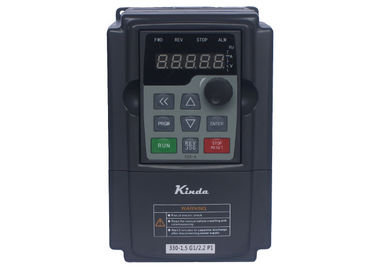

Spindle VFD Frequency Converter Drive1.5KW Modular Design For Engraving Machine Spindle VFD Frequency Converter Drive1.5KW Modular Design For Engraving Machine

Large Image :  Spindle VFD Frequency Converter Drive1.5KW Modular Design For Engraving Machine Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5~8 Day
Payment Terms: T/T
Supply Ability: Adequate inventory
Detailed Product Description
Intelligent Control: Speed Sensorless Open Loop Vector Control V/F: Multi-point V/F Curve Setting
High Reliability: Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design Design: Modular Design, Compact Structure, Easy Maintenance And Enhanced Product Interchangeability
Smart Start/sttop: Reliable Speed Tracking Restart Performance High Overload Capacity: 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
High Light:

variable frequency controller

,

vfd ac drive

Spindle VFD Variable Frequency Drive Engraving Machine Application 1.5KW



With its unique super performance and superior cost performance, the inverter meets the performance requirements of wide range of speed regulation, high speed stability, strong overload capability, large low speed torque, short acceleration and deceleration time, etc. Level speed regulation, according to different engraving objects or engraving process, change the spindle cutting speed in real time. It is widely used in medium and high-end engraving machines that require high and fine engraving process.





Item Technical Index Specification
Input Input voltage 1AC 220~240V±15%
Input frequency 50/60Hz±5%
Output Output voltage 0~rated input voltage
Output frequency 0~6000Hz
  Operation command mode Terminal control
Keypad control
Serial communication control (Modbus)
Overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
Starting torque 0.5Hz/180% (SVC); 1Hz/150% (V/f)
Speed control precision ±0.5% (SVC)
Carrier frequency temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to
Frequency accuracy Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s
Braking unit build-in standard.
DC braking DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency
Braking time: 0.0s~25.0s
Jog operation Jog acceleration/deceleration time: 0.1s~3600.0s Jog operation frequency: 0.0Hz~maximum frequency
Simple PLC & multi-step speed operation It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Torque control Torque control without PG
Wobble frequency control Multiple triangular-wave frequency control, special for textile
Timing/length/counting control Timing/length/counting control function
Fault protection function Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.
Input/output terminals Input terminals Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA
Communication terminals Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol
Output terminals 2 relay outputs,
2 open collector outputs,
2 anaalog outputs, 0~10V / 4~20mA
Human machine interface LED display Display frequency setting, output frequency, output voltage,output current, etc. Two lines display
Environment Ambient temperature -10~50°C, without direct sunshine.
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, >1000M: output derated
Storage temperature -20~60°C

No Items KD330
1 Reliable hardware Only first-class componens are built-in.
2 Rubust design IGBT current > 2 times of inverter output current
Capacitor > 50uF/A
3 PCB aging test 100% test, 50°C, 12 hours.
4 Finished products aging test 100% test, 50°C, 24 hours.
5 Loading test Two times, 100% tested:
1. After manufacturing.
2. After aging test.
6 Grouped pulse testing Without failure under 4500V (better EMC performance).
7 Electrostatic testing 1. Noncontact conditions -- without failure under 10000V.
2. Under contact condition -- without failure under 5000V.
8 High overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
9 Big start torque 0.5Hz/150% (V/f), 1Hz/150% (SVC)
10 LED display >7,5kW, two lines parameters dispaly, convenient for commissioning and operating.
11 EMC filter C3 level EMC filter build-in standardly



Spindle VFD Frequency Converter Drive1.5KW Modular Design For Engraving Machine 0
