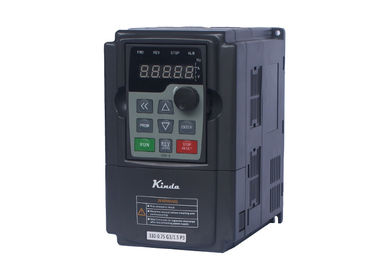

1.5KW 2 HP Vector Frequency Inverter Three Phase Multi Point V / F Curve Setting

I'm Online Chat Now
Certification
China Shenzhen Kinda Technology Co., Ltd certification
China Shenzhen Kinda Technology Co., Ltd certification
1. System is started smoothly, without surge current; 2. Much higher efficiency than old system; 3. Remarkable energy saving than old system; 4. System running smoothly and stably, very low current.

—— Malaysian partner

The machine runs steadily and the high quality machine is very good.

—— Russian agent

1.5KW 2 HP Vector Frequency Inverter Three Phase Multi Point V / F Curve Setting

1.5KW 2 HP Vector Frequency Inverter Three Phase Multi Point V / F Curve Setting
1.5KW 2 HP Vector Frequency Inverter Three Phase Multi Point V / F Curve Setting 1.5KW 2 HP Vector Frequency Inverter Three Phase Multi Point V / F Curve Setting

Large Image :  1.5KW 2 HP Vector Frequency Inverter Three Phase Multi Point V / F Curve Setting Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3~8 Day
Payment Terms: TT
Supply Ability: Adequate inventory
Detailed Product Description
V/F: Multi-point V/F Curve Setting Intelligent Control: Speed Sensorless Open Loop Vector Control
High Overload Capacity: 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s Smart Start/sttop: Reliable Speed Tracking Restart Performance
Design: Modular Design, Compact Structure, Easy Maintenance And Enhanced Product Interchangeability High Reliability: Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design
High Light:

vector control inverter

,

ac inverter drives

2HP ( 1.5KW ) High Frequency Vector Frequency Inverter 3AC 380V~460V

The KD330 series inverter is a universal high-performance drive vector control function inverter.

The inverter-controlled speed control system is based on advanced technical control theory and intelligent control means to achieve extremely high responsiveness and stability.

With its unique super performance and superior cost performance, the inverter meets the performance requirements of the spindle with wide speed range, high speed stability, strong overload capability, large low speed torque and short acceleration and deceleration time.





ItemTechnical IndexSpecification
InputInput voltage1AC 220~240V±15%
3AC 220~240V±15%
3AC 380~460V±15%
Input frequency50/60Hz±5%
OutputOutput voltage0~rated input voltage
Output frequency0~6000Hz
Control FeaturesControl modeV/f control
Sensorless vector control
Torque control
Operation command modeKeypad control
Terminal control
Serial communication control (Modbus)
Overload capacity150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
Starting torque0.5Hz/180% (SVC); 1Hz/150% (V/f)
Speed control precision±0.5% (SVC)
Carrier frequencytemperature and load characteristics 0.5~16.0kHz, automatically adjusted according to
Frequency accuracyDigital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
Torque boostAutomatically torque boost; manually torque boost: 0.1%~30.0
V/f curveThree types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Braking unitbuild-in standard.
DC brakingDC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency
Braking time: 0.0s~25.0s
Jog operationJog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s
Built-in PIDBuilt-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulationKeep output voltage constant automatically when input voltage fluctuating
Control FunctionTorque controlTorque control without PG
Wobble frequency controlMultiple triangular-wave frequency control, special for textile
Timing/length/counting controlTiming/length/counting control function
Over-voltage & over-current stall controlLimit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection functionComprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.
Input/output terminalsInput terminalsProgrammable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA
Output terminals2 relay outputs,
2 open collector outputs,
2 anaalog outputs, 0~10V / 4~20mA
Communication terminalsBuild-in standard RS485 communication interface, support MODBUS-RTU communication protocol
EnvironmentAmbient temperature-10~50°C, without direct sunshine.
Humidity90%RH or less (non-condensing)
Altitude≤1000M: output rated power, >1000M: output derated
Storage temperature-20~60°C

NoItemsKD330
1Reliable hardwareOnly first-class componens are built-in.
2Rubust designIGBT current > 2 times of inverter output current
Capacitor > 50uF/A
3PCB aging test100% test, 50°C, 12 hours.
4Finished products aging test100% test, 50°C, 24 hours.
5Loading testTwo times, 100% tested:
1. After manufacturing.
2. After aging test.
6Electrostatic testing1. Noncontact conditions -- without failure under 10000V.
2. Under contact condition -- without failure under 5000V.
7High overload capacity150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
8Smart start / stop modeAcceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.
9Big start torque0.5Hz/150% (V/f), 1Hz/150% (SVC)
10EMC filterC3 level EMC filter build-in standardly
