15 HP VSD Variable Speed Drive Motor Speed Inverter Multi Point V / F Curve Setting

I'm Online Chat Now
Certification
China Shenzhen Kinda Technology Co., Ltd certification
China Shenzhen Kinda Technology Co., Ltd certification
1. System is started smoothly, without surge current; 2. Much higher efficiency than old system; 3. Remarkable energy saving than old system; 4. System running smoothly and stably, very low current.

—— Malaysian partner

The machine runs steadily and the high quality machine is very good.

—— Russian agent

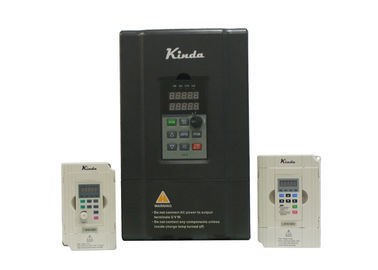

15 HP VSD Variable Speed Drive Motor Speed Inverter Multi Point V / F Curve Setting

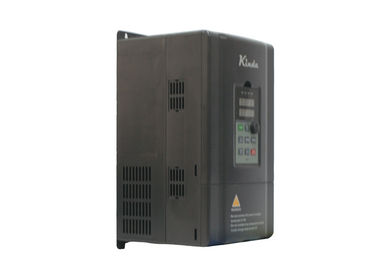

15 HP VSD Variable Speed Drive Motor Speed Inverter Multi Point V / F Curve Setting
15 HP VSD Variable Speed Drive Motor Speed Inverter Multi Point V / F Curve Setting 15 HP VSD Variable Speed Drive Motor Speed Inverter Multi Point V / F Curve Setting

Large Image :  15 HP VSD Variable Speed Drive Motor Speed Inverter Multi Point V / F Curve Setting Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3~8 Day
Payment Terms: TT
Supply Ability: Adequate inventory
Detailed Product Description
V/F: Multi-point V/F Curve Setting Intelligent Control: Speed Sensorless Open Loop Vector Control
High Overload Capacity: 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s Smart Start/sttop: Reliable Speed Tracking Restart Performance
Design: Modular Design, Compact Structure, Easy Maintenance And Enhanced Product Interchangeability High Reliability: Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design
High Light:

ac variable speed drive

,

ac inverter drive speed controller

15HP ( 11KW ) High Frequency VSD Variable Speed Drive 3AC 380V ~ 460V



High stability control, speed control system based on advanced technical control theory and intelligent control means, achieving extremely high responsiveness and stability. Better meet the different needs of various industrial control applications



15 HP VSD Variable Speed Drive Motor Speed Inverter Multi Point V / F Curve Setting 0



Item Technical Index Specification
Input Input voltage 3AC 380~460V±15%
Input frequency 50/60Hz±5%
Output Output voltage 0~rated input voltage
Output frequency 0~6000Hz
Control Features Control mode V/f control
Torque control
Sensorless vector control
Operation command mode Terminal control
Keypad control
Serial communication control (Modbus)
Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.
Overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
Starting torque 0.5Hz/180% (SVC); 1Hz/150% (V/f)
Speed control precision ±0.5% (SVC)
Carrier frequency temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to
Frequency accuracy Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0
V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s
Braking unit build-in standard.
DC braking DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency
Braking time: 0.0s~25.0s
Jog operation Jog acceleration/deceleration time: 0.1s~3600.0s Jog operation frequency: 0.0Hz~maximum frequency
Simple PLC & multi-step speed operation It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Torque control Torque control without PG
Wobble frequency control Multiple triangular-wave frequency control, special for textile
Timing/length/counting control Timing/length/counting control function
Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection function Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.
Input/output terminals Input terminals Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA
Communication terminals Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol
Output terminals 2 relay outputs,
2 open collector outputs,
2 anaalog outputs, 0~10V / 4~20mA
Human machine interface LED display Display frequency setting, output frequency, output voltage,output current, etc. Two lines display
Environment Ambient temperature -10~50°C, without direct sunshine.
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, >1000M: output derated
Storage temperature -20~60°C



Model Motor Rated Input Current (A) Rated Output Current (A)
KW HP
3AC 380~460V±15%
KD330-01100T4 11 15 26 25
