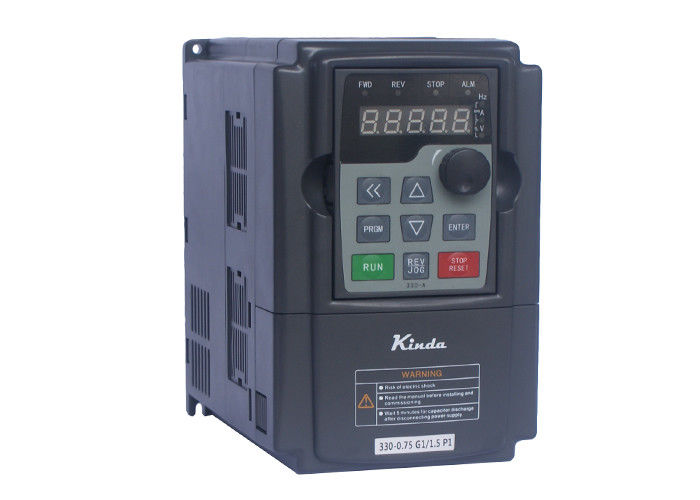

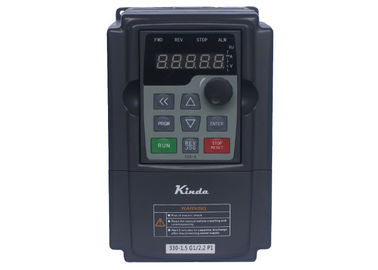

Textile Machine VFD Variable Frequency Drive 3AC 0.75KW With DC Braking

Large Image : Textile Machine VFD Variable Frequency Drive 3AC 0.75KW With DC Braking Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	KD330

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	3~8 Day
Payment Terms:	TT
Supply Ability:	Adequate inventory

Contact Now

Detailed Product Description

Motor Protection:	Over Current, Overload, Blocking, High Efficiency Protection Motor	Speed Regulation:	Panel Adjustment For Stepless Speed Regulation And Improved Finished Product Quality
Start Up:	Start Smoothing And Reduce Mechanical Shock	Braking Method:	With DC Braking, Resistance Energy Braking
Self-study:	Motor Parameter Rotation, Stationary Self-learning	Intelligent Control:	Speed Sensorless Open Loop Vector Control
High Light:	variable frequency drive inverter , vfd ac drive

Textile Machine VFD Variable Frequency Drive 3AC 0.75KW 380V~460V

working principle

The air jet loom is a shuttleless loom that uses a jet stream to pull the weft yarn across the shed.

The working principle is to use air as the weft insertion medium, and the compressed airflow generated by the jet is used to pull the frictional traction force of the weft yarn, and the weft yarn is taken through the shed, and the jet generated by the jet is used to achieve the purpose of weft insertion. This weft insertion method enables the loom to achieve high speed and high yield. Among several shuttleless looms, the air jet loom is the one with the highest speed. Due to the reasonable weft insertion method, the weft insertion rate is high, the operation is simple and safe, the variety adaptability is wide, the machine material consumption is low, and the efficiency is high. High speed and low noise have become one of the most promising new types of cloth machines.

Item	Technical Index	Specification

Input	Input voltage	1AC 220~240V±15%
		3AC 220~240V±15%
		3AC 380~460V±15%
	Input frequency	50/60Hz±5%
Output	Output voltage	0~rated input voltage
	Output frequency	0~6000Hz
Control Features	Control mode	V/f control
		Sensorless vector control
		Torque control
	Operation command mode	Keypad control
		Terminal control
		Serial communication control (Modbus)
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.



	Overload capacity	150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
	Starting torque	0.5Hz/180% (SVC); 1Hz/150% (V/f)
	Speed control precision	±0.5% (SVC)
	Carrier frequency	temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to

	Frequency accuracy	Digital setting: 0.01Hz
		Analog setting: maximum frequency ×0.05%
	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0

	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)

	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s

	Braking unit	build-in standard.
	DC braking	DC braking when starting and stopping
		DC braking frequency: 0.0Hz~maximum frequency
		Braking time: 0.0s~25.0s
	Jog operation	Jog operation frequency: 0.0Hz~maximum frequency
		Jog acceleration/deceleration time: 0.1s~3600.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.

	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)


	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating

Control Function	Torque control	Torque control without PG
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Timing/length/counting control	Timing/length/counting control function

	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping

	Fault protection function	Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.



Input/output terminals	Input terminals	Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA


	Output terminals	2 relay outputs,
		2 open collector outputs,
		2 anaalog outputs, 0~10V / 4~20mA
	Communication terminals	Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol

Human machine interface	LED display	Display frequency setting, output frequency, output voltage,output current, etc. Two lines display

Environment	Ambient temperature	-10~50°C, without direct sunshine.
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: output rated power, >1000M: output derated
	Storage temperature	-20~60°C
