Textile Machine VFD 3 Phase Converter , Kinda Variable Frequency Converter

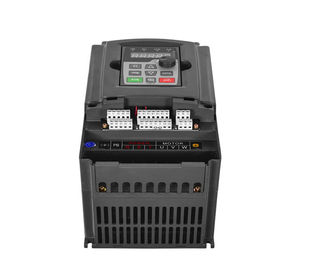

Large Image : Textile Machine VFD 3 Phase Converter , Kinda Variable Frequency Converter Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	KD330

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	3~8 Day
Payment Terms:	TT
Supply Ability:	Adequate inventory

Contact Now

Detailed Product Description

High Reliability:	Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design	Motor Protection:	Over Current, Overload, Blocking, High Efficiency Protection Motor
Speed Regulation:	Panel Adjustment For Stepless Speed Regulation And Improved Finished Product Quality	Braking Method:	With DC Braking, Resistance Energy Braking
Start Up:	Start Smoothing And Reduce Mechanical Shock	Self-study:	Motor Parameter Rotation, Stationary Self-learning
High Light:	vfd 3 phase converter , variable frequency drive phase converter

Textile Machine VFD Frequency Converter 3AC 22KW 380V ~ 460V

The KD330 series inverter is a general-purpose high-performance drive vector control function inverter.

The inverter-controlled speed control system is based on advanced technical control theory and intelligent control means to achieve extremely high responsiveness and stability. Better meet the different needs of various industrial control applications.

Developed by market demand for applications such as textile equipment

Item	Technical Index	Specification

Input	Input voltage	1AC 220~240V±15%
		3AC 220~240V±15%
		3AC 380~460V±15%
	Input frequency	50/60Hz±5%
Output	Output voltage	0~rated input voltage
	Output frequency	0~6000Hz
Control Features	Control mode	V/f control
		Sensorless vector control
		Torque control
	Overload capacity	150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
	Starting torque	0.5Hz/180% (SVC); 1Hz/150% (V/f)
	Speed control precision	±0.5% (SVC)
	Carrier frequency	temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to

	Frequency accuracy	Digital setting: 0.01Hz
		Analog setting: maximum frequency ×0.05%
	Operation command mode	Keypad control
		Terminal control
		Serial communication control (Modbus)
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.



	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0

	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s

	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)

	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration
		time, range: 0.0s~65000s
	Braking unit	build-in standard.
	DC braking	DC braking when starting and stopping
		DC braking frequency: 0.0Hz~maximum frequency
		Braking time: 0.0s~25.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.

	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)


	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating

Control Function	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping

	Torque control	Torque control without PG
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Timing/length/counting control	Timing/length/counting control function

	Fault protection function	Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.



Input/output terminals	Input terminals	Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA


	Output terminals	2 relay outputs,
		2 open collector outputs,
		2 anaalog outputs, 0~10V / 4~20mA
	Communication terminals	Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol

Human machine interface	LED display	Display frequency setting, output frequency, output voltage,output current, etc. Two lines display

Environment	Ambient temperature	-10~50°C, without direct sunshine.
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: output rated power, >1000M: output derated
	Storage temperature	-20~60°C


No	Items	KD330
1	Reliable hardware	Only first-class componens are built-in.
2	Rubust design	IGBT current > 2 times of inverter output current
		Capacitor > 50uF/A
3	Electrostatic testing	1. Noncontact conditions -- without failure under 10000V.
		2. Under contact condition -- without failure under 5000V.
4	High overload capacity	150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
	Smart start / stop mode	Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.

5	PCB aging test	100% test, 50°C, 12 hours.
	Finished products aging test	100% test, 50°C, 24 hours.
6	Loading test	Two times, 100% tested:
		1. After manufacturing.
		2. After aging test.
7	Grouped pulse testing	Without failure under 4500V (better EMC performance).

8	Big start torque	0.5Hz/150% (V/f), 1Hz/150% (SVC)
9	LED display	>7,5kW, two lines parameters dispaly, convenient for commissioning and operating.

10	EMC filter	C3 level EMC filter build-in standardly
