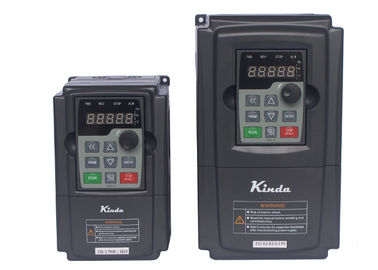

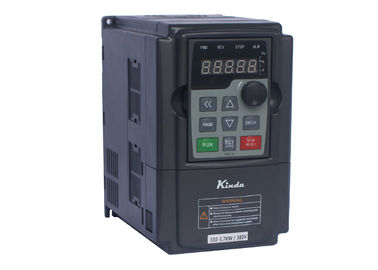

Textile Machine Variable Frequency Drive Inverter 3 Phase 4KW 380V - 460V

Large Image : Textile Machine Variable Frequency Drive Inverter 3 Phase 4KW 380V - 460V Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	KD330

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	3~8 Day
Payment Terms:	TT
Supply Ability:	Adequate inventory

Contact Now

Detailed Product Description

Motor Protection:	Over Current, Overload, Blocking, High Efficiency Protection Motor	Self-study:	Motor Parameter Rotation, Stationary Self-learning
Braking Method:	With DC Braking, Resistance Energy Braking	Start Up:	Start Smoothing And Reduce Mechanical Shock
Starting Torque:	0.5Hz/150% Torque, Speed Ratio 1:100, Dynamic Response <20ms, Steady Speed Accuracy ±0.2%
High Light:	vfd inverter drive , 3 phase motor inverter

Air jet loom Variable Frequency Drive Inverter 3AC 4KW 380V~460V

working principle

The air jet loom is a shuttleless loom that uses a jet stream to pull the weft yarn across the shed.

The working principle is to use air as the weft insertion medium, and the compressed airflow generated by the jet is used to pull the frictional traction force of the weft yarn, and the weft yarn is taken through the shed, and the jet generated by the jet is used to achieve the purpose of weft insertion. This weft insertion method enables the loom to achieve high speed and high yield. Among several shuttleless looms, the air jet loom is the one with the highest speed. Due to the reasonable weft insertion method, the weft insertion rate is high, the operation is simple and safe, the variety adaptability is wide, the machine material consumption is low, and the efficiency is high. High speed and low noise have become one of the most promising new types of cloth machines.

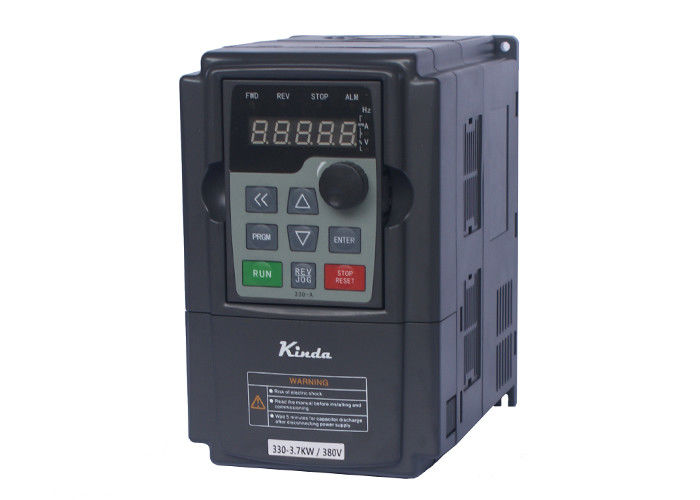

Textile Machine Variable Frequency Drive Inverter 3 Phase 4KW 380V - 460V 0

Item	Technical Index	Specification

Input	Input voltage	1AC 220~240V±15%
		3AC 220~240V±15%
		3AC 380~460V±15%
	Input frequency	50/60Hz±5%
Output	Output voltage	0~rated input voltage
	Output frequency	0~6000Hz
Control Features	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.



	Control mode	Torque control
		V/f control
		Sensorless vector control
	Operation command mode	Terminal control
		Keypad control
		Serial communication control (Modbus)
	Overload capacity	150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
	Frequency accuracy	Analog setting: maximum frequency ×0.05%
		Digital setting: 0.01Hz
	Starting torque	0.5Hz/180% (SVC); 1Hz/150% (V/f)
	Speed control precision	±0.5% (SVC)
	Carrier frequency	temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to

	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0

	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)

	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s

	Braking unit	build-in standard.
	DC braking	DC braking when starting and stopping
		DC braking frequency: 0.0Hz~maximum frequency
		Braking time: 0.0s~25.0s
	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)


	Jog operation	Jog operation frequency: 0.0Hz~maximum frequency
		Jog acceleration/deceleration time: 0.1s~3600.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.

	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating

Control Function	Torque control	Torque control without PG
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Timing/length/counting control	Timing/length/counting control function

	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping

	Fault protection function	Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.



Input/output terminals	Output terminals	2 open collector outputs,
		2 relay outputs,
		2 anaalog outputs, 0~10V / 4~20mA
	Input terminals	Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA


	Communication terminals	Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol

Human machine interface	LED display	Display frequency setting, output frequency, output voltage,output current, etc. Two lines display

Environment	Ambient temperature	-10~50°C, without direct sunshine.
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: output rated power, >1000M: output derated
	Storage temperature	-20~60°C


No	Items	KD330
1	Reliable hardware	Only first-class componens are built-in.
2	Rubust design	IGBT current > 2 times of inverter output current
		Capacitor > 50uF/A
3	PCB aging test	100% test, 50°C, 12 hours.
4	Finished products aging test	100% test, 50°C, 24 hours.
5	Loading test	1. After manufacturing.
		2. After aging test.
		Two times, 100% tested:
6	Grouped pulse testing	Without failure under 4500V (better EMC performance).

7	Smart start / stop mode	Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.

8	Electrostatic testing	1. Under contact condition -- without failure under 5000V.
9		2. Noncontact conditions -- without failure under 10000V.
	High overload capacity	150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
10	Big start torque	0.5Hz/150% (V/f), 1Hz/150% (SVC)
11	LED display	>7,5kW, two lines parameters dispaly, convenient for commissioning and operating.

12	EMC filter	C3 level EMC filter build-in standardly
