Textile Machine Ac Motor Inverter , Kinda 1.5KW Vector Ac Inverter Drives

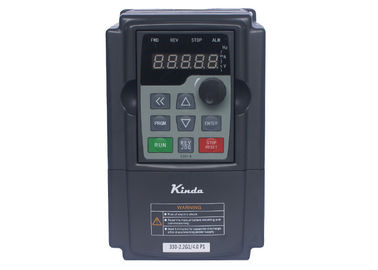

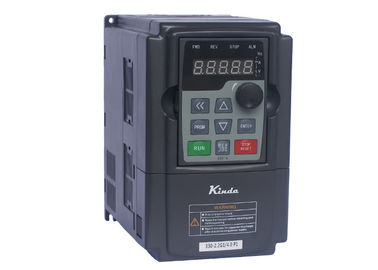

Large Image : Textile Machine Ac Motor Inverter , Kinda 1.5KW Vector Ac Inverter Drives Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	KD330

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	3~8 Day
Payment Terms:	TT
Supply Ability:	Adequate inventory

Contact Now

Detailed Product Description

Speed Regulation:	Panel Adjustment For Stepless Speed Regulation And Improved Finished Product Quality	Motor Protection:	Over Current, Overload, Blocking, High Efficiency Protection Motor
Braking Method:	With DC Braking, Resistance Energy Braking	Self-study:	Motor Parameter Rotation, Stationary Self-learning
Start Up:	Start Smoothing And Reduce Mechanical Shock	Way Of Communication:	Standard Modbus Communication
High Light:	vector drive vfd , ac inverter drives

Textile Machine Vector Frequency Inverter 3AC 1.5KW 380V ~ 460V

High-performance current vector technology, using special control algorithms, not only meets the special requirements of the air jet loom for acceleration time, but also has the advantages of convenient speed regulation, stable operation and high reliability.
The traditional replacement belt shifting mode is completely abandoned, so that the speed control can be steplessly regulated, the control is more precise, and the adjustment is more convenient. The efficiency of the air jet loom is greatly improved, and the damage of the mechanical replacement belt to the equipment is solved.

Item	Technical Index	Specification

Input	Input voltage	1AC 220~240V±15%
		3AC 220~240V±15%
		3AC 380~460V±15%
	Input frequency	50/60Hz±5%
Output	Output voltage	0~rated input voltage
	Output frequency	0~6000Hz
Control Features	Control mode	V/f control
		Sensorless vector control
		Torque control
	Operation command mode	Keypad control
		Terminal control
		Serial communication control (Modbus)
	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0

	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)

	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s

	Overload capacity	150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
	Starting torque	0.5Hz/180% (SVC); 1Hz/150% (V/f)
	Speed control precision	±0.5% (SVC)
	Carrier frequency	0.5~16.0kHz, automatically adjusted according to temperature and load characteristics

	Frequency accuracy	Digital setting: 0.01Hz
		Analog setting: maximum frequency ×0.05%
	Braking unit	build-in standard.
	DC braking	DC braking when starting and stopping
		DC braking frequency: 0.0Hz~maximum frequency
		Braking time: 0.0s~25.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.

	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)


Control Function	Torque control	Torque control without PG
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping

	Fault protection function	Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.



Input/output terminals	Input terminals	Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA


	Output terminals	2 relay outputs,
		2 open collector outputs,
		2 anaalog outputs, 0~10V / 4~20mA
	Communication terminals	Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol

Environment	Ambient temperature	-10~50°C, without direct sunshine.
	Storage temperature	-20~60°C

	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: output rated power, >1000M: output derated

No	Items	KD330
1	Reliable hardware	Only first-class componens are built-in.
2	Rubust design	IGBT current > 2 times of inverter output current
		Capacitor > 50uF/A
3	PCB aging test	100% test, 50°C, 12 hours.
4	Finished products aging test	100% test, 50°C, 24 hours.
5	Loading test	Two times, 100% tested:
		1. After manufacturing.
		2. After aging test.
6	Electrostatic testing	1. Noncontact conditions -- without failure under 10000V.
		2. Under contact condition -- without failure under 5000V.
7	High overload capacity	150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
8	Smart start / stop mode	Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.

9	Big start torque	0.5Hz/150% (V/f), 1Hz/150% (SVC)
10	LED display	>7,5kW, two lines parameters dispaly, convenient for commissioning and operating.

11	EMC filter	C3 level EMC filter build-in standardly
