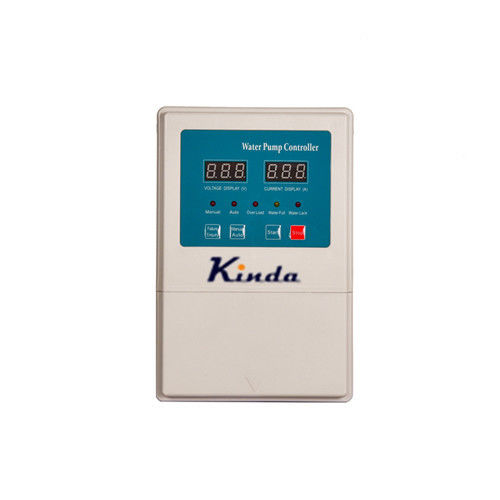

Single Phase Automatic Motor Pump Controller , Auto Water Tank Controller 220V~240V

Large Image : Single Phase Automatic Motor Pump Controller , Auto Water Tank Controller 220V~240V Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	PC

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	10USD~50USD
Delivery Time:	3~7Day
Payment Terms:	T/T
Supply Ability:	10~100000

Contact Now

Detailed Product Description

Pump Protection:	Protection Functions Such As Overload, No Load, And Ultra Low Voltage	Memory:	Fault Memory Function, 5 Reasons For Failure Can Be Found
Power:	0.4KW~15KW	PCB Protection:	Spray Three Anti-paint To Protect The Circuit Board Intelligently And Efficiently
Control:	Main/slave Control Energy Saving	Control Distance:	The Longest Control Distance Is 500 Meters
High Light:	automatic water level controller , automatic water pump motor controller

Single-phase automatic water pump controller 220V~240V

The automatic pump controller is simple and efficient. When the pump is started to pump water, it is often forgotten to shut it down, resulting in waste of electricity and water. The installation of the fully automatic pump is simple and efficient to solve the start and stop of the pump. When the pool is filled with high water level, the pump water supply is stopped by the sensor signal. When the pool is at low water level, the sensor signal starts the pump to pump water.

The automatic water pump controller adopts digital core with overload, no load and ultra low voltage protection. The upper and lower levels and pressure are automatically controlled in one.

Can be connected to float control, pressure gauge control and probe sensor control

Technical Specifications

Item	Technical Index	Specification
Input	Input voltage	1AC 220V±15%,
		3AC 220V±15%
		3AC 380V±15%
	Input frequency	50/60Hz±5%
Self-consumed power	Standby state	<3.5W
Self-consumed power	Running state	<4.5W
Default setting	No-load current	0.0A
Default setting	No-load restart time	30 minutes
Control distance	Maximum control distances	500m
Overload protection time	Inverse time limit (±15% time error	120% / 50s
		150% / 30s
		200% / 15s
		300% / 6s
		500% / 1s

Selection Guide

Inverter Model	Suitable motor	Pump quantity	Breaker
Single phase 220V
PC1-S2-1500	0.37~1.5kW	1	No
PC1-S2-2200	0.37~2.2kW	1	No
PC2-S2-2200B	0.37~2.2kW	2	Build-in
Three phase 220V
PC1-T2-2200	0.37~2.2kW	1	No
PC1-T2-2200B	0.37~2.2kW	1	Build-in
PC2-T2-2200B	0.37~2.2kW	2	Build-in
PC1-T2-4000	1.0~4.0kW	1	No
PC1-T2-4000B	1.0~4.0kW	1	Build-in
PC2-T2-4000B	1.0~4.0kW	2	Build-in
PC1-T2-7500B	1.0~7.5kW	1	Build-in
PC2-T2-7500B	1.0~7.5kW	2	Build-in
Three phase 380V
PC1-T4-2200	0.37~2.2kW	1	No
PC1-T4-2200B	0.37~2.2kW	1	Build-in
PC2-T4-2200B	0.37~2.2kW	2	Build-in
PC1-T4-4000	1.0~4.0kW	1	No
PC1-T4-4000B	1.0~4.0kW	1	Build-in
PC2-T4-4000B	1.0~4.0kW	2	Build-in
PC1-T4-7500	1.0~7.5kW	1	No
PC1-T4-7500B	1.0~7.5kW	1	Build-in
PC2-T4-7500B	1.0~7.5kW	2	Build-in
PC1-T4-11000B	2.2~11kW	1	Build-in
PC2-T4-11000B	2.2~11kW	2	Build-in
PC1-T4-15000B	2.2~15kW	1	Build-in
PC2-T4-15000B	2.2~15kW	2	Build-in

Wiring connection of float switch for upper pool water level control

The common terminal of float switch connect to the low level terminal of controller, short connect high
& middle level terminals of controller and connect to the normal open terminal of float switch.

Wiring connection of float switch for lower pool water level control

The common terminal of float switch connect to the low level terminal of controller, short connect high
& middle level terminals of controller and connect to the normal close terminal of float switch.
