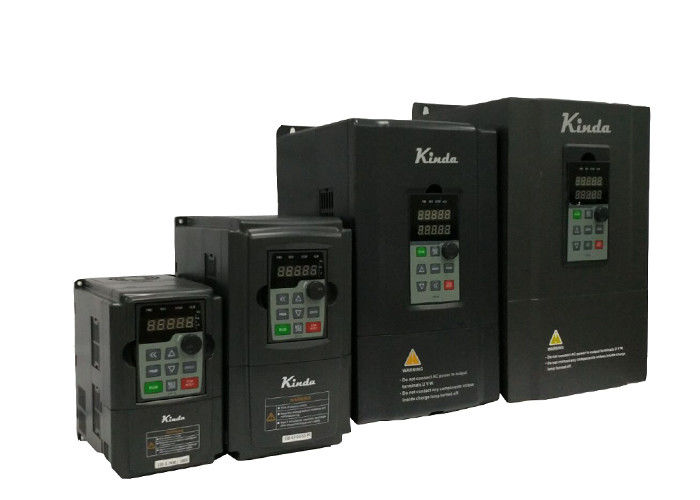

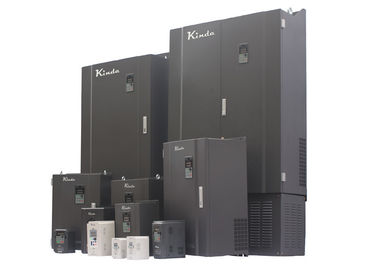

Open Loop Vector Industrial Frequency Converter 0.4KW - 185KW Stable Performance

Open Loop Vector Industrial Frequency Converter 0.4KW - 185KW Stable Performance
Open Loop Vector Industrial Frequency Converter 0.4KW - 185KW Stable Performance Open Loop Vector Industrial Frequency Converter 0.4KW - 185KW Stable Performance

Large Image :  Open Loop Vector Industrial Frequency Converter 0.4KW - 185KW Stable Performance Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3~8 Day
Payment Terms: TT
Supply Ability: Adequate inventory
Detailed Product Description
High Reliability: Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design Starting Torque: 0.5Hz/150% Torque, Speed Ratio 1:100, Dynamic Response <20ms, Steady Speed Accuracy ±0.2%
Intelligent Control: Speed Sensorless Open Loop Vector Control High Overload Capacity: 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
Pulse: High Speed Pulse Input And Output V/F: Multi-point V/F Curve Setting
High Light:

3 phase frequency inverter


variable frequency inverter

220V ~ 240V AC Frequency Inverter Overload 0.4KW ~ 185KW


VFD frequency converter is a general-purpose high-performance frequency converter, mainly used to control and regulate the speed and torque of three-phase asynchronous motor. It adopts high-performance current control technology, low frequency and high torque output, strong overload capability and superior stability. Sexual and dynamic performance, with a variety of communication bus functions, support for multiple PG cards, powerful, stable performance; with perfect anti-skip control and ability to adapt to poor grid, can be widely used in textile, paper, wire drawing, machine tools, packaging Drive changes in food, fans, pumps and various automated production equipment.



Item Technical Index Specification
Input Input voltage 1AC 220~240V±15%
Input frequency 50/60Hz±5%
Output Output voltage 0~rated input voltage
Output frequency 0~6000Hz
Control Features Control mode V/f control
Torque control
Sensorless vector control
Operation command mode Terminal control
Keypad control
Serial communication control (Modbus)
Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.
Overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
Starting torque 0.5Hz/180% (SVC); 1Hz/150% (V/f)
Speed control precision ±0.5% (SVC)
Carrier frequency temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to
Frequency accuracy Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0
V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s
Braking unit build-in standard.
DC braking DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency
Braking time: 0.0s~25.0s
Jog operation Jog acceleration/deceleration time: 0.1s~3600.0s Jog operation frequency: 0.0Hz~maximum frequency
Simple PLC & multi-step speed operation It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Torque control Torque control without PG
Wobble frequency control Multiple triangular-wave frequency control, special for textile
Timing/length/counting control Timing/length/counting control function
Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection function Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.
Input/output terminals Input terminals Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA
Communication terminals Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol
Output terminals 2 relay outputs,
2 open collector outputs,
2 anaalog outputs, 0~10V / 4~20mA
Human machine interface LED display Display frequency setting, output frequency, output voltage,output current, etc. Two lines display
Environment Ambient temperature -10~50°C, without direct sunshine.
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, >1000M: output derated
Storage temperature -20~60°C
No Items KD330
1 Reliable hardware Only first-class componens are built-in.
2 Rubust design IGBT current > 2 times of inverter output current
Capacitor > 50uF/A
3 PCB aging test 100% test, 50°C, 12 hours.
4 Finished products aging test 100% test, 50°C, 24 hours.
5 Loading test Two times, 100% tested:
1. After manufacturing.
2. After aging test.
6 Grouped pulse testing Without failure under 4500V (better EMC performance).
7 Electrostatic testing 1. Noncontact conditions -- without failure under 10000V.
2. Under contact condition -- without failure under 5000V.
8 High overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
9 Smart start / stop mode Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.
10 Big start torque 0.5Hz/150% (V/f), 1Hz/150% (SVC)
11 LED display >7,5kW, two lines parameters dispaly, convenient for commissioning and operating.
12 EMC filter C3 level EMC filter build-in standardly


Model Motor Rated Input Current (A) Rated Output Current (A)
3AC 220~240V±15%
KD330-00075T2 0.75 1 3.4 2.8
KD330-00150T2 1.5 2 5 4.4
KD330-00220T2 2.2 3 6.5 5.8
KD330-00400T2 4 5 20.6 17
KD330-00550T2 5.5 7.5 26 25
KD330-00750T2 7.5 10 35 32
KD330-01100T2 11 15 46.5 45
KD330-01500T2 15 20 62 60
KD330-01850T2 18.5 25 76 75
KD330-02200T2 22 30 92 90
KD330-03000T2 30 40 113 110
KD330-03700T2 37 50 157 152
KD330-04500T2 45 60 180 176
KD330-05500T2 55 75 214 210
KD330-07500T2 75 100 310 304
KD330-09000T2 90 125 365 350
KD330-11000T2 110 150 430 426
KD330-13200T2 132 175 531 520
KD330-16000T2 160 210 620 585
KD330-18500T2 185 250 665 650
