Mini Vector Frequency Inverter High Frequency Small Size Stable Perfomance

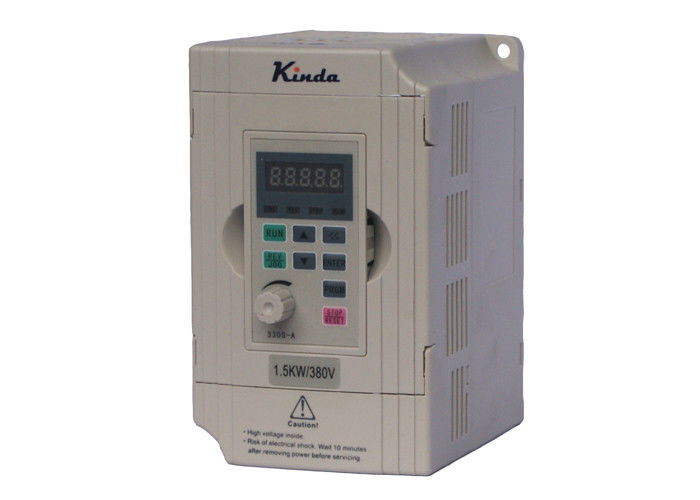

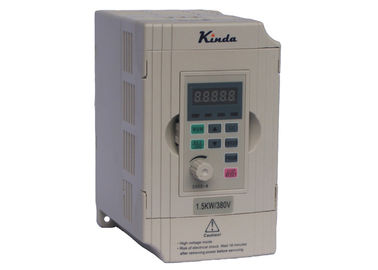

Large Image : Mini Vector Frequency Inverter High Frequency Small Size Stable Perfomance Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	KD100

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	3~8 Day
Payment Terms:	TT
Supply Ability:	Adequate inventory

Contact Now

Detailed Product Description

Self-study:	Motor Parameter Rotation, Stationary Self-learning	PID:	Built-in PID With 16-speed Control
High Reliability:	Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design	Intelligent Control:	Speed Sensorless Open Loop Vector Control
Exterior:	Small Size Reduces Installation Space	V/F:	Multi-point V/F Curve Setting
High Light:	vector control inverter , ac inverter drives

Mini High Frequency Vector Frequency Inverter 3AC 380V~460V 0.75KW~1.5KW

KD100 series mini universal inverter high performance drive vector control. Superior performance, compact structure, small size, high precision, easy operation, high reliability, multi-layer protection, better than any previous speed regulation mode.

With open-loop vector and V/F control, high-performance current vector control technology can realize asynchronous motor control with its own 485 communication port. The built-in PID makes it easy to implement a closed-loop process control system that can operate up to 16 speeds. With swing frequency and fixed length control, it can be used for driving of textile, paper, wire drawing, packaging, food and various automatic production equipment.

Model	Motor		Rated Input Current (A)	Rated Output Current (A)
Model	KW	HP	Rated Input Current (A)	Rated Output Current (A)
3AC 380V±15%
KD100-00075T4	0.75	1	3.4	2.5
KD100-00150T4	1.5	2	5	4.2

no.	Items	KD100
1	Reliable hardware	Only first-class componens are built-in.
2	Rubust design	All the components are selected at higher size.
3	PCB aging test	100% test, 45°C, 12 hours.
4	Finished products aging test	100% test, 50°C, 24 hours.
5	Loading test	Two times, 100%:
		1. After manufacturing.
		2. After aging test.
6	Grouped pulse testing	Without failure under 4500V (better EMC performance).
7	Electrostatic testing	1. Noncontact conditions -- without failure under 10000V.
7	Electrostatic testing	2. Under contact condition -- without failure under 5000V.
8	Unqualification during production	<0.03%
9	Total failure ratio at industrail sites	<0.5%
10	High overload capacity	150% / 60s, 180% / 10s, 200% /1s
11	Smart start / stop mode	Acceleration / Deceleration time can be set as 0.0s, the inverter start and stop the motor as fast as possible without failure.
12	S ccure Acceleration / Deceleration mode	Better start stop performance.
13	Big start torque	0.5Hz/150% (V/f), 1Hz/150% (SVC)
14	Better stop performance	1. Current is limited smoothly while stoping;
14	Better stop performance	2. Stops smoothly in very short time for heavy load applications.
15	Better input voltage flexibility	-15%~+15% without failure.
