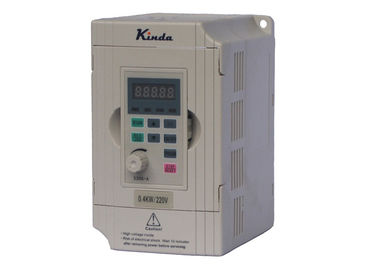

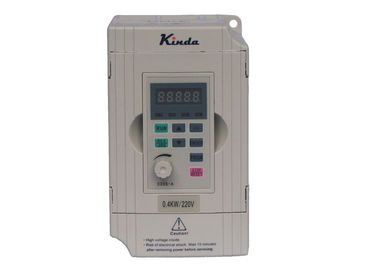

Mini V / F AC Variable Frequency Drive 380V - 460V High Precision Compact Structure

Large Image : Mini V / F AC Variable Frequency Drive 380V - 460V High Precision Compact Structure Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	KD100

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	3~8 Day
Payment Terms:	TT
Supply Ability:	Adequate inventory

Contact Now

Detailed Product Description

High Overload Capacity:	150% / 120s, 160% / 60s, 180% / 10s, 200% /1s	Intelligent Control:	Speed Sensorless Open Loop Vector Control
High Reliability:	Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design	Self-study:	Motor Parameter Rotation, Stationary Self-learning
V/F:	Multi-point V/F Curve Setting	PID:	Built-in PID With 16-speed Control
High Light:	ac motor vfd , adjustable frequency ac drive

Mini V/F AC Variable Frequency Drive 380V~460V 0.75KW~1.5KW 3AC

Mini universal drive high performance drive vector control. Equipped with Modbus communication, the performance is superior, the structure is compact, the volume is smaller, and the protection function is complete.

Small size, high precision, easy operation, high reliability, multi-layer protection of equipment, better than any previous speed regulation mode.

Item	Technical Index	Specification

Input	Input voltage	3AC 220~240V±15%
	Input frequency	50/60Hz±5%
Output	Output frequency	0~6000Hz
	Output voltage	0~rated input voltage
Control Features	Control mode	V/f control
		Sensorless vector control
		Torque control
	Operation command mode	Keypad control
		Terminal control
		Serial communication control (Modbus)
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.



	Speed control precision	±0.5% (SVC)
	Starting torque	0.5Hz/180% (SVC); 1Hz/150% (V/f)
	Carrier frequency	temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to

	Frequency accuracy	Digital setting: 0.01Hz
		Analog setting: maximum frequency ×0.05%
	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s

	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0

	Braking unit	build-in standard.
	DC braking	DC braking when starting and stopping
		DC braking frequency: 0.0Hz~maximum frequency
		Braking time: 0.0s~25.0s
	Jog operation	Jog operation frequency: 0.0Hz~maximum frequency
		Jog acceleration/deceleration time: 0.1s~3600.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.

	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)


	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating

Control Function	Torque control	Torque control without PG
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Timing/length/counting control	Timing/length/counting control function

	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping

	Fault protection function	Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.



Input/output terminals	Input terminals	Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA


	Output terminals	2 relay outputs,
		2 open collector outputs,
		2 anaalog outputs, 0~10V / 4~20mA
	Communication terminals	Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol

Environment	Ambient temperature	-10~50°C, without direct sunshine.
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: output rated power, >1000M: output derated
	Storage temperature	-20~60°C

Model	Motor		Rated Input Current (A)	Rated Output Current (A)
Model	KW	HP	Rated Input Current (A)	Rated Output Current (A)
3AC 380V±15%
KD100-00075T4	0.75	1	3.4	2.5
KD100-00150T4	1.5	2	5	4.2
