Mini Type Ac Inverter Drive Speed Controller , Inverter Variable Speed Drive

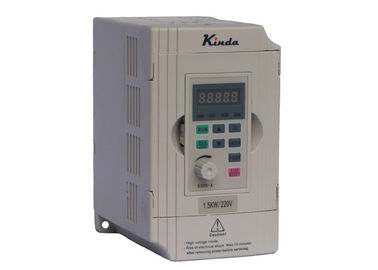

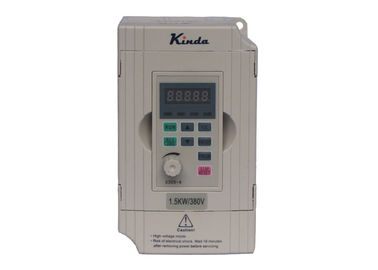

Large Image : Mini Type Ac Inverter Drive Speed Controller , Inverter Variable Speed Drive Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	KD100

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	3~8 Day
Payment Terms:	TT
Supply Ability:	Adequate inventory

Contact Now

Detailed Product Description

Exterior:	Small Size Reduces Installation Space	V/F:	Multi-point V/F Curve Setting
High Reliability:	Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design	Self-study:	Motor Parameter Rotation, Stationary Self-learning
Intelligent Control:	Speed Sensorless Open Loop Vector Control	PID:	Built-in PID With 16-speed Control
High Light:	ac variable speed drive , ac inverter drive speed controller

Mini Type VSD Variable Speed Drive 0.4KW ~ 1.5KW 220V ~ 240V

KD100 series mini universal inverter high performance drive vector control. Equipped with Modbus communication, the performance is superior, the structure is compact, the volume is small, the precision is high, the operation is simple, the reliability is high, and the multi-layer protection is better than any previous speed regulation mode.

Model	Motor		Rated Input Current (A)	Rated Output Current (A)
Model	KW	HP	Rated Input Current (A)	Rated Output Current (A)
1AC 220V±15%
KD100-00040S2	0.4	0.5	5.4	2.3
KD100-00075S2	0.75	1	8.2	4
KD100-00150S2	1.5	2	14	7

Item	Technical Index	Specification
Input	Input voltage	1AC 220V±15%
Input	Input frequency	50/60Hz±5%
Output	Output voltage	0~rated input voltage
Output	Output frequency	0~6000Hz
Control Features	Control mode	V/f control
	Control mode	Sensorless vector control
	Operation command mode	Keypad control
		Terminal control
		Serial communication control (Modbus)
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.
	Overload capacity	150% / 60s, 180% / 10s, 200% / 1s.
	Starting torque	0.5Hz/150% (SVC); 1Hz/150% (V/f)
	Frequency accuracy	Digital setting: 0.01Hz
	Frequency accuracy	Analog setting: maximum frequency ×0.05%
	Automatic voltage regulation	Keep output voltage constant automatically when input
	Automatic voltage regulation	voltage fluctuating
Input/output terminals	Input terminals	Programmable digital input: 5 multifunctional inputs
		2 programmable analog input:
		VI: 0~10V
		CI: 4~20mA
	Output terminals	Relay output: 1 channel
		Open collector output: 1 channel
		Analog output: 1 channel (0~10V)
	Communication terminals	Build-in RS485 communication interface, support
	Communication terminals	MODBUS-RTU communication protocol
Environment	Ambient temperature	-10~50°C, without direct sunshine.
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: output rated power, <1000M: output derated
	Storage temperature	-20~60°C
