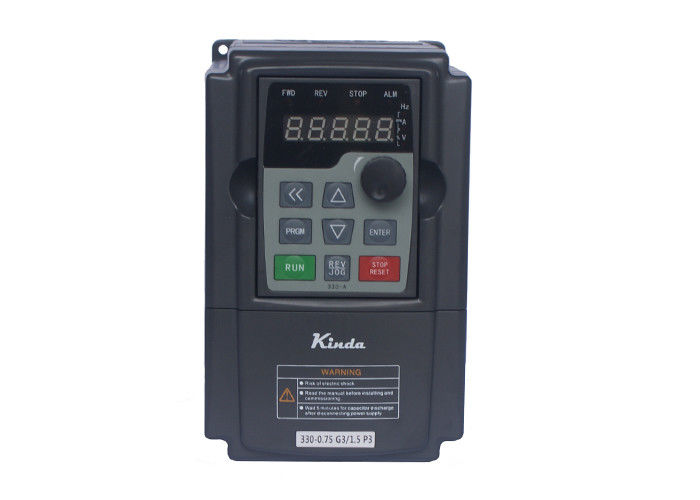

Kinda Single Phase Variable Frequency High Reliability For Carving Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Starting Torque: | 0.5Hz/150% Torque, Speed Ratio 1:100, Dynamic Response <20ms, Steady Speed Accuracy ±0.2% | High Reliability: | Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design |
|---|---|---|---|
| High Overload Capacity: | 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s | Intelligent Control: | Speed Sensorless Open Loop Vector Control |
| Braking Method: | With DC Braking, Resistance Energy Braking | Pulse: | High Speed Pulse Input And Output |
| High Light: | single phase motor drive,single phase frequency inverter |
||
Kinda Single Phase Variable Frequency Drive applied in carving machine
(2) It needs high torque at low speed.
2, Requests for frequency inverters (VFD)
(1) Wide range of operation frequency.
(2) It needs multi-points V/f carve, which can control the output torque at different speed.
(3) An external input ON/OFF signal will be used to start and stop the frequency inverter, an external input analog signal will be used
to control the output frequency and it needs fault reset input signal and fault output signal.
3, Instruction for commissioning
(1) Pictures of carving machine
(2) Parameters list
Take 400Hz, 380V and 24000RPM carving machine as example.
| No. | Function codes | Default | Setting value | Explanation |
| 1 | F0-02 | 0 | 1 | External start / stop signal |
| 2 | F0-03 | 1 | 2, 3, 4 | External analog signal to control the output frequency |
| 3 | F5-00 | 1 | 1 | Start |
| 4 | F5-11 | 0 | 11 | Two-line mode 2 |
| 5 | F5-02 | 0 | 9 | Fault reset |
| 6 | F6-02 | 2 | 2 | Fault output |
| 7 | F8-13 | 0 | 1 | Reverse forbidden |
| 8 | F0-10 | 50 | 400 | Maximum frequency 400Hz |
| 9 | F0-12 | 50 | 400 | Upper limit frequency 400Hz |
| 10 | F2-04 | 50 | 400 | Motor rated frequency 400Hz |
| 11 | F2-05 | Model depend | 24000 | Motor rated RPM |
| 12 | F4-00 | 0 | 1 | Multi-points V/f carve |
| 13 | F4-02 | 50 | 400 | Torque boost cutoff frequency (400Hz) |
| 14 | F4-03 | 0 | 0 | V/f frequency point 1 (0Hz) |
| 15 | F4-04 | 0% | 2.0~4.0% | V/f voltage point 1 |
| 16 | F4-05 | 0 | 100 | V/f frequency point 2 (100Hz) |
| 17 | F4-06 | 0% | 26~30% | V/f voltage point 2 |
| 18 | F4-07 | 0 | 300 | V/f frequency point 3 (300Hz) |
| 19 | F4-08 | 0% | 75~80% | V/f voltage point 3 |
(3) Typical wiring diagram
4, Notices
(1) To ensure the over current fault will not happen, the multi-points V/f setting in F4 group should be set base on real requests, the
voltage points and frequency points should follow the rule of V/f1< V/f2< V/f3, and the voltage at low frequency cannot be set too
big.
(2) The motor’s parameters on the nameplate of carving machine should be set correctly in F2 group.
