1. System is started smoothly, without surge current; 2. Much higher efficiency than old system; 3. Remarkable energy saving than old system; 4. System running smoothly and stably, very low current.

—— Malaysian partner

The machine runs steadily and the high quality machine is very good.

—— Russian agent

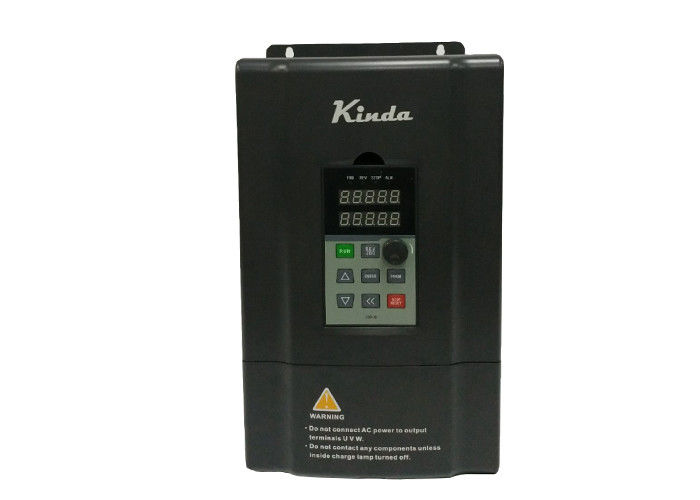

Intelligent Water Supply Variable Frequency Drive Pump Control 15KW 380V - 460V

Large Image : Intelligent Water Supply Variable Frequency Drive Pump Control 15KW 380V - 460V Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	KD330

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	3~8 Day
Payment Terms:	TT
Supply Ability:	Adequate inventory

Contact Now

Detailed Product Description

Starting Torque:	0.5Hz/150% Torque, Speed Ratio 1:100, Dynamic Response <20ms, Steady Speed Accuracy ±0.2%	Design:	Modular Design, Compact Structure, Easy Maintenance And Enhanced Product Interchangeability
Start Up:	Simple Parameter Setting, One-button Start Automatic Addition And Subtraction Pump Control	Run:	Smooth Main/slave Switching, No Change In Water Pressure
PCB Protection:	Spray Three Anti-paint To Protect The Circuit Board Intelligently And Efficiently	Control:	Main/slave Control Energy Saving
High Light:	pump frequency converter , vfd pump control

15KW 380V ~ 460V Variable Frequency Drive Pump Contro Intelligent Water Supply

When the water supply automatic control system works, the equipment detects the pressure change of the water supply pipe network when the water consumption changes through the high-sensitivity pressure sensor installed on the water supply pipe network. When the pressure transmitter pressure is maximum, the inverter frequency is the lowest, the pump motor The lowest speed, when the pressure of the pressure transmitter is the smallest, the inverter frequency is the highest, the pump motor speed is the highest, and the frequency of the inverter changes with the change of water consumption.

After the microcomputer judges the calculation and compares it with the set pressure, it sends a command to change the frequency to the controller. The controller changes the speed of the pump motor and the number of enabled pumps by changing the frequency, automatically adjusting the peak and valley water consumption, and ensuring that the water supply pipe network pressure is constant

1. Typical application diagram

Intelligent Water Supply Variable Frequency Drive Pump Control 15KW 380V - 460V 0
