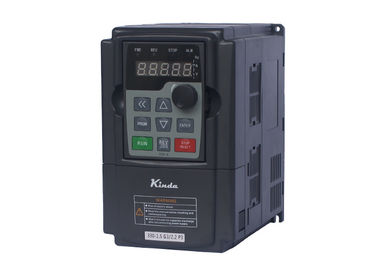

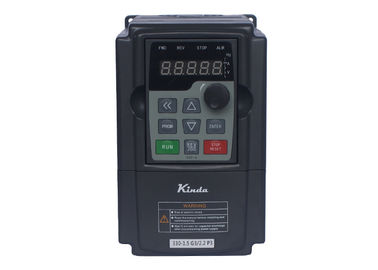

Sensorless Vector VFD Three Phase Variable Frequency Drive 1.5KW Easy Installation

China Sensorless Vector VFD Three Phase Variable Frequency Drive 1.5KW Easy Installation supplier
Sensorless Vector VFD Three Phase Variable Frequency Drive 1.5KW Easy Installation supplier Sensorless Vector VFD Three Phase Variable Frequency Drive 1.5KW Easy Installation supplier

Large Image :  Sensorless Vector VFD Three Phase Variable Frequency Drive 1.5KW Easy Installation

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3~8 Day
Payment Terms: TT
Supply Ability: Adequate inventory
Contact Now
Detailed Product Description
Starting Torque: 0.5Hz/150% Torque, Speed Ratio 1:100, Dynamic Response <20ms, Steady Speed Accuracy ±0.2% Intelligent Control: Speed Sensorless Open Loop Vector Control
High Reliability: Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design High Overload Capacity: 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
Dual Display Keyboard: Dual Display LED Keyboard One Row Can Be Switched, Two Rows Of Parameter Settings Pulse: High Speed Pulse Input And Output

Vector Three Phase Variable Frequency Drive 380V~460V 0.75KW 1.5KW 2.2KW



The inverter-controlled speed control system is based on advanced technical control theory and intelligent control means to achieve extremely high responsiveness and stability.



Wide speed range, high speed regulation, easy installation and commissioning, perfect protection function, stable and reliable operation, remarkable energy saving effect





Item Technical Index Specification
Input Input voltage 1AC 220~240V±15%
3AC 220~240V±15%
3AC 380~460V±15%
Input frequency 50/60Hz±5%
Output Output voltage 0~rated input voltage
Output frequency 0~6000Hz
Control Features Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.
Control mode V/f control
Sensorless vector control
Torque control
Operation command mode Keypad control
Terminal control
Serial communication control (Modbus)
Overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
Frequency accuracy Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
Starting torque 0.5Hz/180% (SVC); 1Hz/150% (V/f)
Speed control precision ±0.5% (SVC)
Carrier frequency temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0
V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s
Braking unit build-in standard.
DC braking DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency
Braking time: 0.0s~25.0s
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Jog operation Jog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s
Simple PLC & multi-step speed operation It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Torque control Torque control without PG
Wobble frequency control Multiple triangular-wave frequency control, special for textile
Timing/length/counting control Timing/length/counting control function
Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection function Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.
Input/output terminals Output terminals 2 relay outputs,
2 open collector outputs,
2 anaalog outputs, 0~10V / 4~20mA
Input terminals Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA
Communication terminals Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface LED display Display frequency setting, output frequency, output voltage,output current, etc. Two lines display
Environment Ambient temperature -10~50°C, without direct sunshine.
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, >1000M: output derated
Storage temperature -20~60°C

No Items KD330
1 Reliable hardware Only first-class componens are built-in.
2 Rubust design IGBT current > 2 times of inverter output current
Capacitor > 50uF/A
3 PCB aging test 100% test, 50°C, 12 hours.
4 Finished products aging test 100% test, 50°C, 24 hours.
5 Loading test Two times, 100% tested:
1. After manufacturing.
2. After aging test.
6 Grouped pulse testing Without failure under 4500V (better EMC performance).
7 Smart start / stop mode Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.
8 Electrostatic testing 1. Noncontact conditions -- without failure under 10000V.
9 2. Under contact condition -- without failure under 5000V.
High overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
10 Big start torque 0.5Hz/150% (V/f), 1Hz/150% (SVC)
11 LED display >7,5kW, two lines parameters dispaly, convenient for commissioning and operating.
12 EMC filter C3 level EMC filter build-in standardly



Model Motor Rated Input Current (A) Rated Output Current (A)
KW HP
3AC 380~460V±15%
KD330-00075T4 0.75 1 3.4 2.8
KD330-00150T4 1.5 2 5 4.4
KD330-00220T4 2.2 3 6.5 5.8



Sensorless Vector VFD Three Phase Variable Frequency Drive 1.5KW Easy Installation
