Mini Type VFD Variable Frequency Controller Anti Interference Design

I'm Online Chat Now
Certification
China Shenzhen Kinda Technology Co., Ltd certification
China Shenzhen Kinda Technology Co., Ltd certification
1. System is started smoothly, without surge current; 2. Much higher efficiency than old system; 3. Remarkable energy saving than old system; 4. System running smoothly and stably, very low current.

—— Malaysian partner

The machine runs steadily and the high quality machine is very good.

—— Russian agent

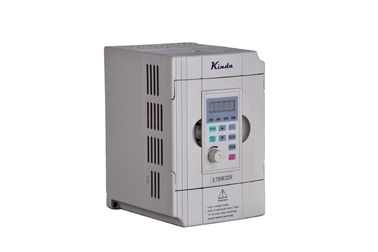

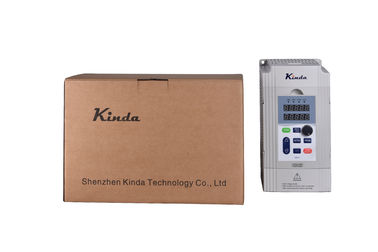

Mini Type VFD Variable Frequency Controller Anti Interference Design

Mini Type VFD Variable Frequency Controller Anti Interference Design
Mini Type VFD Variable Frequency Controller Anti Interference Design Mini Type VFD Variable Frequency Controller Anti Interference Design

Large Image :  Mini Type VFD Variable Frequency Controller Anti Interference Design Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD100

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3~8 Day
Payment Terms: TT
Supply Ability: Adequate inventory
Detailed Product Description
Intelligent Control: Speed Sensorless Open Loop Vector Control High Reliability: Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design
V/F: Multi-point V/F Curve Setting PID: Built-in PID With 16-speed Control
Self-study: Motor Parameter Rotation, Stationary Self-learning Exterior: Small Size Reduces Installation Space
High Light:

variable frequency drive inverter

,

vfd ac drive

Mini type VFD Variable Frequency Drive 3AC 0.75KW ~1.5KW



KD100 series mini universal inverter high performance drive vector control. Equipped with Modbus communication, the performance is superior, the structure is compact, the volume is smaller, and the protection function is complete.



no.
Items
KD100
1
Reliable hardware
Only first-class componens are built-in.
2
Rubust design
All the components are selected at higher size.
3
PCB aging test
100% test, 45°C, 12 hours.
4
Finished products aging test
100% test, 50°C, 24 hours.
5
Loading test
Two times, 100%:
1. After manufacturing.
2. After aging test.
6
Grouped pulse testing
Without failure under 4500V (better EMC performance).
7
Electrostatic testing
1. Noncontact conditions -- without failure under 10000V.
2. Under contact condition -- without failure under 5000V.
8
Unqualification during production
<0.03%
9
Total failure ratio at industrail sites
<0.5%
10
High overload capacity
150% / 60s, 180% / 10s, 200% /1s
11
Smart start / stop mode
Acceleration / Deceleration time can be set as 0.0s, the inverter start and stop the motor as fast as possible without failure.
12
S ccure Acceleration / Deceleration mode
Better start stop performance.
13
Big start torque
0.5Hz/150% (V/f), 1Hz/150% (SVC)
14
Better stop performance
1. Current is limited smoothly while stoping;
2. Stops smoothly in very short time for heavy load applications.
15
Better input voltage flexibility
-15%~+15% without failure.



Model Motor Rated Input Current (A) Rated Output Current (A)
KW HP
3AC 380V±15%
KD100-00075T4 0.75 1 3.4 2.5
KD100-00150T4 1.5 2 5 4.2
