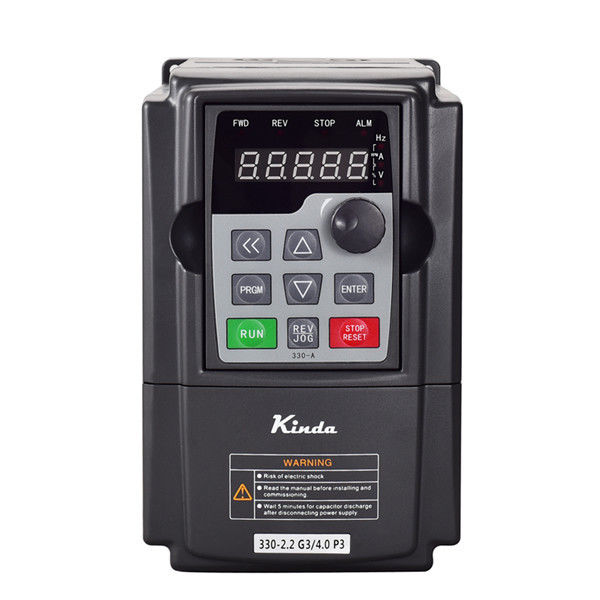

Textile Machine AC Variable Frequency Drive High Efficiency Protection For Motor

Textile Machine AC Variable Frequency Drive High Efficiency Protection For Motor
Textile Machine AC Variable Frequency Drive High Efficiency Protection For Motor Textile Machine AC Variable Frequency Drive High Efficiency Protection For Motor

Large Image :  Textile Machine AC Variable Frequency Drive High Efficiency Protection For Motor Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3~8 Day
Payment Terms: TT
Supply Ability: Adequate inventory
Detailed Product Description
Motor Protection: Over Current, Overload, Blocking, High Efficiency Protection Motor Speed Regulation: Panel Adjustment For Stepless Speed Regulation And Improved Finished Product Quality
Braking Method: With DC Braking, Resistance Energy Braking Start Up: Start Smoothing And Reduce Mechanical Shock
Self-study: Motor Parameter Rotation, Stationary Self-learning PCB Protection: Spray Three Anti-paint To Protect The Circuit Board Intelligently And Efficiently
High Light:

ac motor vfd

,

variable ac drive

Textile Machine AC Variable Frequency Drive 3AC 2.2KW 380V~460V



VFD inverter products adopt special control algorithms, which can not only meet the special requirements of the air jet loom for acceleration time, but also have the advantages of convenient speed regulation, stable operation and high reliability.
The traditional replacement belt shifting mode is completely abandoned, so that the speed control can be steplessly regulated, the control is more precise, and the adjustment is more convenient. The efficiency of the air jet loom is greatly improved, and the damage of the mechanical replacement belt to the equipment is solved.





Item Technical Index Specification
Input Input voltage 1AC 220~240V±15%
3AC 220~240V±15%
3AC 380~460V±15%
Input frequency 50/60Hz±5%
Output Output voltage 0~rated input voltage
Output frequency 0~6000Hz
Control Features Control mode V/f control
Sensorless vector control
Torque control
Starting torque 0.5Hz/180% (SVC); 1Hz/150% (V/f)
Speed control precision ±0.5% (SVC)
Carrier frequency temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to
Frequency accuracy Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
Operation command mode Keypad control
Terminal control
Serial communication control (Modbus)
Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s
V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration
time, range: 0.0s~65000s
Braking unit build-in standard.
DC braking DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency
Braking time: 0.0s~25.0s
Simple PLC & multi-step speed operation It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Torque control Torque control without PG
Wobble frequency control Multiple triangular-wave frequency control, special for textile
Timing/length/counting control Timing/length/counting control function
Fault protection function Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.
Input/output terminals Input terminals Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA
Output terminals 2 relay outputs,
2 open collector outputs,
2 anaalog outputs, 0~10V / 4~20mA
Communication terminals Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface LED display Display frequency setting, output frequency, output voltage,output current, etc. Two lines display
Environment Ambient temperature -10~50°C, without direct sunshine.
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, >1000M: output derated
Storage temperature -20~60°C

No Items KD330
1 Reliable hardware Only first-class componens are built-in.
2 Rubust design IGBT current > 2 times of inverter output current
Capacitor > 50uF/A
3 Electrostatic testing 1. Noncontact conditions -- without failure under 10000V.
2. Under contact condition -- without failure under 5000V.
4 Smart start / stop mode Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.
5 PCB aging test 100% test, 50°C, 12 hours.
Finished products aging test 100% test, 50°C, 24 hours.
6 Loading test Two times, 100% tested:
1. After manufacturing.
2. After aging test.
7 Grouped pulse testing Without failure under 4500V (better EMC performance).
8 Big start torque 0.5Hz/150% (V/f), 1Hz/150% (SVC)
9 LED display >7,5kW, two lines parameters dispaly, convenient for commissioning and operating.
10 EMC filter C3 level EMC filter build-in standardly



Model Motor Rated Input Current (A) Rated Output Current (A)
KW HP
3AC 380~460V±15%
KD330-00220T4 2.2 3 6.5 5.8
