High Performance Single Phase Motor Drive , Single Phase Motor Inverter

High Performance Single Phase Motor Drive , Single Phase Motor Inverter
High Performance Single Phase Motor Drive , Single Phase Motor Inverter High Performance Single Phase Motor Drive , Single Phase Motor Inverter

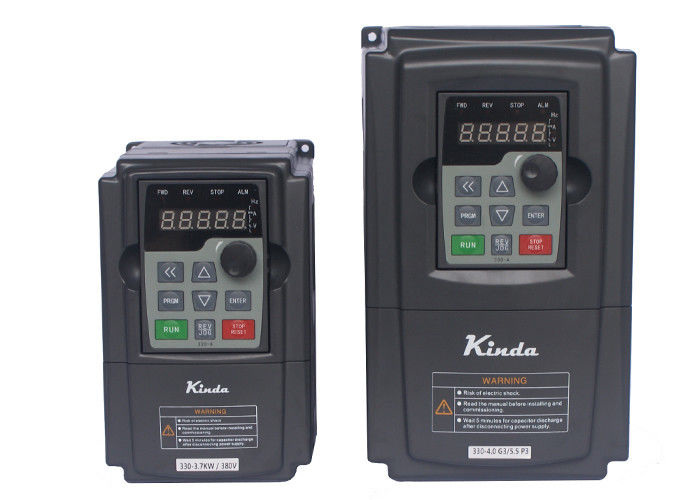

Large Image :  High Performance Single Phase Motor Drive , Single Phase Motor Inverter Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5~8 Day
Payment Terms: T/T
Supply Ability: Adequate inventory
Detailed Product Description
Intelligent Control: Speed Sensorless Open Loop Vector Control Braking Method: With DC Braking, Resistance Energy Braking
Starting Torque: 0.5Hz/150% Torque, Speed Ratio 1:100, Dynamic Response <20ms, Steady Speed Accuracy ±0.2% High Overload Capacity: 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
Dual Display Keyboard: Dual Display LED Keyboard One Row Can Be Switched, Two Rows Of Parameter Settings PCB Protection: Spray Three Anti-paint To Protect The Circuit Board Intelligently And Efficiently
High Light:

single phase vfd drive

,

single phase motor drive

High Performance Single Phase Variable Frequency Drive 220V~240V 4KW~7.5KW



KD330 series inverter universal high-performance drive vector control function inverter. High stability control, speed control system based on advanced technical control theory and intelligent control means, achieving extremely high responsiveness and stability. Better meet the different needs of various industrial control applications



Item Technical Index Specification
Input Input voltage 1AC 220~240V±15%
3AC 220~240V±15%
Input frequency 50/60Hz±5%
Output Output voltage 0~rated input voltage
Output frequency 0~6000Hz
Control Features Overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
Starting torque 0.5Hz/180% (SVC); 1Hz/150% (V/f)
Speed control precision ±0.5% (SVC)
Carrier frequency temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to
Frequency accuracy Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0
V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s
Braking unit build-in standard.
DC braking DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency
Braking time: 0.0s~25.0s
Jog operation Jog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s
Control mode V/f control
Sensorless vector control
Torque control
Operation command mode Keypad control
Terminal control
Serial communication control (Modbus)
Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.
Simple PLC & multi-step speed operation It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Torque control Torque control without PG
Wobble frequency control Multiple triangular-wave frequency control, special for textile
Timing/length/counting control Timing/length/counting control function
Fault protection function Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.
Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Input/output terminals Input terminals Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA
Output terminals 2 relay outputs,
2 open collector outputs,
2 anaalog outputs, 0~10V / 4~20mA
Communication terminals Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface LED display Display frequency setting, output frequency, output voltage,output current, etc. Two lines display
Environment Ambient temperature -10~50°C, without direct sunshine.
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, >1000M: output derated
Storage temperature -20~60°C

No Items KD330
1 Reliable hardware Only first-class componens are built-in.
2 Rubust design IGBT current > 2 times of inverter output current
Capacitor > 50uF/A
3 PCB aging test 100% test, 50°C, 12 hours.
4 Finished products aging test 100% test, 50°C, 24 hours.
5 Electrostatic testing 1. Noncontact conditions -- without failure under 10000V.
2. Under contact condition -- without failure under 5000V.
Loading test Two times, 100% tested:
6 1. After manufacturing.
2. After aging test.
7 Grouped pulse testing Without failure under 4500V (better EMC performance).
8 High overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
9 Smart start / stop mode Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.
10 Big start torque 0.5Hz/150% (V/f), 1Hz/150% (SVC)
11 LED display >7,5kW, two lines parameters dispaly, convenient for commissioning and operating.
12 EMC filter C3 level EMC filter build-in standardly



High Performance Single Phase Motor Drive , Single Phase Motor Inverter 0
