3 Phase HVAC AC Variable Frequency Drive 45KW / 37KW Modular Design

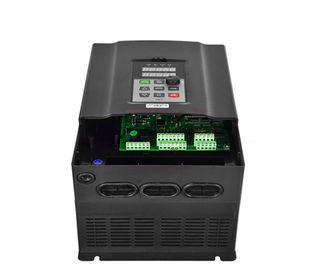

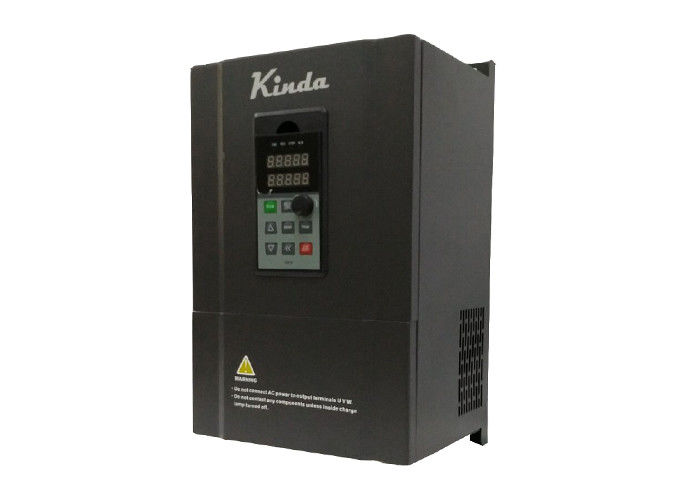

Large Image : 3 Phase HVAC AC Variable Frequency Drive 45KW / 37KW Modular Design Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Kinda
Model Number:	KD330

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Delivery Time:	3~8 Day
Payment Terms:	TT
Supply Ability:	Adequate inventory

Contact Now

Detailed Product Description

Terminal Function:	Rich Multi-function Terminal	Way Of Communication:	Standard Modbus Communication
PCB Protection:	Spray Three Anti-paint To Protect The Circuit Board Intelligently And Efficiently	Design:	Modular Design, Compact Structure, Easy Maintenance And Enhanced Product Interchangeability
Smart Start/sttop:	Reliable Speed Tracking Restart Performance
High Light:	adjustable frequency ac drive , variable ac drive

HVAC AC Variable Frequency Drive 45KW 37KW 3AC 380V ~ 460V

The KD330 series inverter is a universal high-performance drive vector control function inverter.

Equipped with Modbus communication, the performance is superior, the structure is compact, the volume is small, the precision is high, the operation is simple, the reliability is high, and the multi-layer protection is better than any previous speed regulation mode.

The inverter-controlled speed control system is based on advanced technical control theory and intelligent control means to achieve extremely high responsiveness and stability.

Item	Technical Index	Specification

Input	Input voltage	1AC 220~240V±15%
		3AC 220~240V±15%
		3AC 380~460V±15%
	Input frequency	50/60Hz±5%
Output	Output frequency	0~6000Hz
	Output voltage	0~rated input voltage
Control Features	Operation command mode	Keypad control
		Terminal control
		Serial communication control (Modbus)
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.



	Control mode	V/f control
		Sensorless vector control
		Torque control
	Overload capacity	150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
	Frequency accuracy	Digital setting: 0.01Hz
		Analog setting: maximum frequency ×0.05%
	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0

	Starting torque	0.5Hz/180% (SVC); 1Hz/150% (V/f)
	Speed control precision	±0.5% (SVC)
	Carrier frequency	temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to

	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)

	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s

	Braking unit	build-in standard.
	DC braking	DC braking when starting and stopping
		DC braking frequency: 0.0Hz~maximum frequency
		Braking time: 0.0s~25.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.

	Jog operation	Jog operation frequency: 0.0Hz~maximum frequency
		Jog acceleration/deceleration time: 0.1s~3600.0s
	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)


	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating

Control Function	Torque control	Torque control without PG
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping

	Timing/length/counting control	Timing/length/counting control function

	Fault protection function	Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.



Input/output terminals	Output terminals	2 relay outputs,
		2 open collector outputs,
		2 anaalog outputs, 0~10V / 4~20mA
	Communication terminals	Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol

	Input terminals	Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA


Human machine interface	LED display	Display frequency setting, output frequency, output voltage,output current, etc. Two lines display

Environment	Ambient temperature	-10~50°C, without direct sunshine.
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: output rated power, >1000M: output derated
	Storage temperature	-20~60°C


No	Items	KD330
1	Reliable hardware	Only first-class componens are built-in.
2	Rubust design	IGBT current > 2 times of inverter output current
		Capacitor > 50uF/A
3	PCB aging test	100% test, 50°C, 12 hours.
4	Finished products aging test	100% test, 50°C, 24 hours.
5	Loading test	Two times, 100% tested:
		1. After manufacturing.
		2. After aging test.
6	Smart start / stop mode	Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.

7	Grouped pulse testing	Without failure under 4500V (better EMC performance).

8	Electrostatic testing	1. Noncontact conditions -- without failure under 10000V.
		2. Under contact condition -- without failure under 5000V.
9	Big start torque	0.5Hz/150% (V/f), 1Hz/150% (SVC)
10	High overload capacity	150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
11	LED display	>7,5kW, two lines parameters dispaly, convenient for commissioning and operating.

12	EMC filter	C3 level EMC filter build-in standardly
