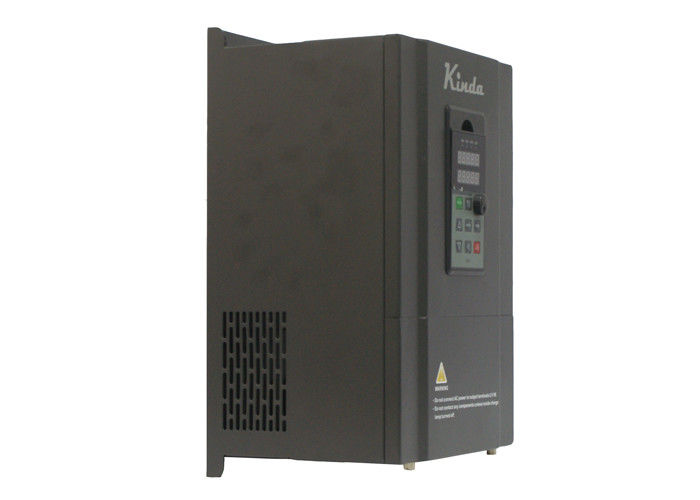

37KW 50 Hp Variable Frequency Drive , Frequency Inverter Drive High Frequency

37KW 50 Hp Variable Frequency Drive , Frequency Inverter Drive High Frequency
37KW 50 Hp Variable Frequency Drive , Frequency Inverter Drive High Frequency 37KW 50 Hp Variable Frequency Drive , Frequency Inverter Drive High Frequency

Large Image :  37KW 50 Hp Variable Frequency Drive , Frequency Inverter Drive High Frequency Get Best Price

Product Details:

Place of Origin: China
Brand Name: Kinda
Model Number: KD330

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3~8 Day
Payment Terms: TT
Supply Ability: Adequate inventory
Detailed Product Description
Smart Start/sttop: Reliable Speed Tracking Restart Performance High Reliability: Mature And Reliable Drive, Protection Circuit Design, Anti-interference Design
Design: Modular Design, Compact Structure, Easy Maintenance And Enhanced Product Interchangeability Intelligent Control: Speed Sensorless Open Loop Vector Control
High Overload Capacity: 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s V/F: Multi-point V/F Curve Setting
High Light:

vfd inverter drive

,

3 phase motor inverter

50HP ( 37KW ) High Frequency Variable Frequency Drive Inverter 3AC 380V~460V



The KD330 series inverter is a universal high-performance drive vector control function inverter.
The inverter-controlled speed control system is based on advanced technical control theory and intelligent control means to achieve extremely high responsiveness and stability.
With its unique super performance and superior cost performance, the inverter meets the performance requirements of the spindle with wide speed range, high speed stability, strong overload capability, large low speed torque and short acceleration and deceleration time.





Item Technical Index Specification
Input Input voltage 1AC 220~240V±15%
3AC 220~240V±15%
3AC 380~460V±15%
Input frequency 50/60Hz±5%
Output Output voltage 0~rated input voltage
Output frequency 0~6000Hz
Control Features Control mode V/f control
Sensorless vector control
Torque control
Operation command mode Serial communication control (Modbus)
Keypad control
Terminal control
Frequency setting mode Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.
Overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% / 1s.
Starting torque 0.5Hz/180% (SVC); 1Hz/150% (V/f)
Speed control precision ±0.5% (SVC)
Carrier frequency temperature and load characteristics 0.5~16.0kHz, automatically adjusted according to
Frequency accuracy Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%
Torque boost Automatically torque boost; manually torque boost: 0.1%~30.0
V/f curve Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.0s~65000s
Braking unit build-in standard.
DC braking DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency
Braking time: 0.0s~25.0s
Jog operation Jog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s
Simple PLC & multi-step speed operation It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.
Built-in PID Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant automatically when input voltage fluctuating
Control Function Torque control Torque control without PG
Wobble frequency control Multiple triangular-wave frequency control, special for textile
Timing/length/counting control Timing/length/counting control function
Over-voltage & over-current stall control Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection function Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running data while failures happen.
Input/output terminals Input terminals Programmable digital input: 7 multifunctional inputs, one can be work as high speed pulse input.3 programmable analog input:AI1, AI2, AI3: 0~10V / 4~20mA
Output terminals 2 anaalog outputs, 0~10V / 4~20mA
2 relay outputs,
2 open collector outputs,
Communication terminals Build-in standard RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface LED display Display frequency setting, output frequency, output voltage,output current, etc. Two lines display
Environment Ambient temperature -10~50°C, without direct sunshine.
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, >1000M: output derated
Storage temperature -20~60°C

No Items KD330
1 Reliable hardware Only first-class componens are built-in.
2 Rubust design IGBT current > 2 times of inverter output current
Capacitor > 50uF/A
3 PCB aging test 100% test, 50°C, 12 hours.
4 Finished products aging test 100% test, 50°C, 24 hours.
5 Loading test Two times, 100% tested:
1. After manufacturing.
2. After aging test.
6 Grouped pulse testing Without failure under 4500V (better EMC performance).
7 Electrostatic testing 1. Noncontact conditions -- without failure under 10000V.
2. Under contact condition -- without failure under 5000V.
8 High overload capacity 150% / 120s, 160% / 60s, 180% / 10s, 200% /1s
9 Smart start / stop mode Acceleration / Deceleration time can be set as 0.0s, the inverter starts and stops the motor as fast as possible without failure.
10 Big start torque 0.5Hz/150% (V/f), 1Hz/150% (SVC)
11 LED display >7,5kW, two lines parameters dispaly, convenient for commissioning and operating.
12 EMC filter C3 level EMC filter build-in standardly



Model Motor Rated Input Current (A) Rated Output Current (A)
KW HP
3AC 380~460V±15%
KD330-03700T4 37 50 76 75





Grounding method before
